Muchini wo tiva xikandza

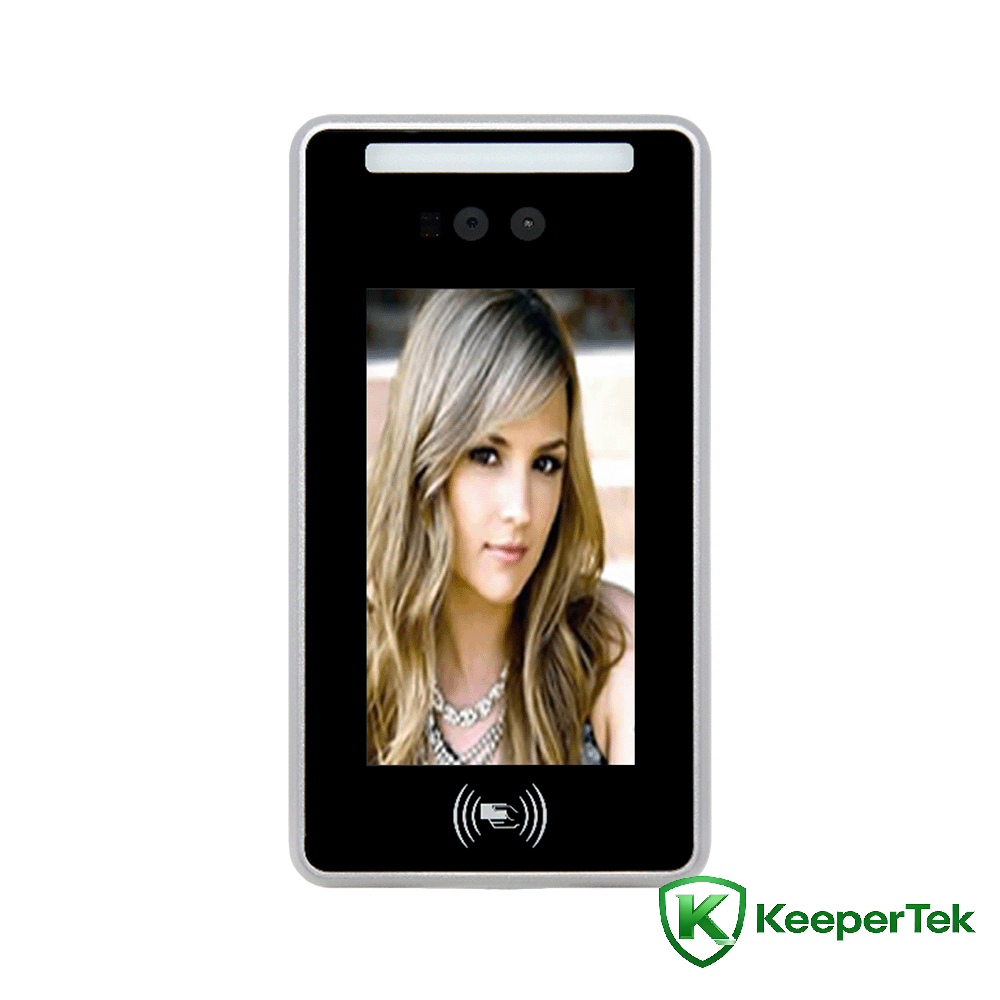

7inch vanhu Khadi ro tiva xikandza ri swipa muchini wa hinkwaswo eka xin’we KT- FR007

Tipharamitha ta xithekiniki

Xiphurosesa: ARM ya swiyenge swimbirhi Cortex-A7, @1.0GHz

Endlelo ro tirha: Sisiteme yo tirha ya Linux

Vuhlayiselo: 8GB EMMC

Khamera: Binocular, 2,1 wa timiliyoni ta tipikseli leti tirhaka, 1920*1080

Xitirhisiwa xo teka swifaniso: 1/2.8" Progressive Scan CMOS

Lens: 6mm

Modyuli yo swipa makhadi: 13.56MHz, yi seketela Mifare S50, makhadi ya S70, makhadi ya ultralinght, makhadi ya NTAG, DESFire D21, D41, D81, makhadi ya CPU lama nga tihlanganisiki

Modyuli ya WIFI: IEEE 802.11b/g/n standard, yi seketela 2.4GHz frequency band, rivilo ra 1Mbps-150Mbps

Modyuli ya Bluetooth: 8DPSK, π/4DQPSK, GFSK, rivilo ra 1Mbps-2, 3Mbps

Xipikara: standard, swilo swo tlanga hi rito swi nga endliwa hi ku landza swilaveko swa wena

Ku lemuka ku leha: 1.2 ~ 2.2 wa timitara, angle leyi lulamisiwaka

Ku lemuka mpfhuka: 0.5 ~ 1.5 wa timitara, ku cinca-cinca ku ya hi lens

Angle ya xikandza: 30 degrees eximatsini na xinene, 30 degrees ehenhla na le hansi

Nkarhi wo lemuka: ehansi ka 0.5 wa tisekoni

Vuswikoti byo hlayisa: 60,000 wa tirhekhodo ta swifaniso swa xihatla

Vuswikoti bya xikandza: 20,000

Tinxaka ta makhadi lama nga swipiwa: 13.56MHz, nomboro ya xirhendzevutani ya khadi ra ID, Mifare, NFC (xihlaya xa khadi ra ID lexi akiweke endzeni lexi nga hlawuriwa)

Vuhumelerisi byo cinca: 1 vuhumelerisi byo cinca, tiphurotho tin’wana ta GPIO ti nga endliwa hi ku landza swilaveko swa wena

USB interface: 1 Xihlanganisi xa USB tanihi xitirhisiwa

Xihlanganisi xa netiweke: 1 RJ45 10M/100M adaptive Ethernet port, Gigabit network port leyi nga cinciwaka

Xihlanganisi xa Wiegand: 1 Vuhumelerisi bya xihlanganisi xa Wiegand, 1 Nyingiso wa xihlanganisi xa Wiegand

Xihlanganisi xa vuhlanganisi: 1 xihlanganisi xa RS485

Khamera: Khamera ya mahlo lamambirhi, ku vonakala loku vonakaka na le kusuhi na infrared, yi seketela ku kumiwa ka miri lowu hanyaka

Tipikseli leti tirhaka: 2.1 wa timiliyoni ta tipikseli leti tirhaka, 1920*1080

Ku voninga ka le hansi: muvala 0.01Lux @F1.2 (ICR); ntima na wo basa 0.001Lux @F1.2 (ICR) .

Nhlayo ya xikombiso na mpfumawulo: ≥50db (AGC OFF) .

Ku hisa ka ntirho: -30°C - +60℃

Kutsakama loku tirhaka: 0~90% kutsakama loku ringanaka, kungari na condensation

Matimba ya switirhisiwa: 10W(MAX)

Level ya ku fafazela munyu: Rp6 kumbe ehenhla

Antistatic: ku khumbana ±6KV, moya ±8KV

Mphakelo wa gezi: DC12V/2A

Level yo lwisana na madzolonga: IK06

Xiyimo xa nsirhelelo: IP66

Swihlawulekisi swa xikirini: 7-inch high-definition IPS screen

Vukulu bya switirhisiwa: 252 (ku leha) * 136 (ku anama) * 26 (ku enta) mm

Swihlawulekiso

Seketela ku kumiwa ka miri lowu hanyaka hi binocular

Swi seketela ku landzelerisa xikandza na ku paluxiwa ka vanhu lava fambafambaka eka tindhawu leti nga na ku vonakala ka le ndzhaku loku tiyeke

Algorithm yo hlawuleka yo lemuka xikandza, yi lemuka kahle swikandza, nkarhi wo lemuka xikandza wu le hansi ka 0.5s

CPU ya le kaya leyi akiweke endzeni

Hi ku tirhisa sisiteme yo tirha ya LINUX, sisiteme yi tshamisekile

Nkarhi wo tsutsuma exikarhi ka ku tsandzeka MTBF>50000h

Ku seketela ku fika eka 20,000+ wa tilayiburari to pimanisa swikandza na 60,000 wa tirhekhodo to lemuka

Tiphurotokholo ta vuhlanganisi leti fuweke, leti seketelaka TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, tiphrothokholi ta MQTT ehansi ka Windows/Linux na tipulatifomo tin’wana

Ku hisa ka ntirho: -30°C-60℃

IP66 yi nga ngheniwi hi mati na ntshuri

Host leyi akiweke endzeni ka IC card swiping module

Switirhisiwa swa hardware leswi fuweke (I/O, WG26, WG34, RJ45, USB, RS485) .

7-inch IPS full-viewing HD display, ku hava ku tota kumbe ku hlwela eka swifaniso
